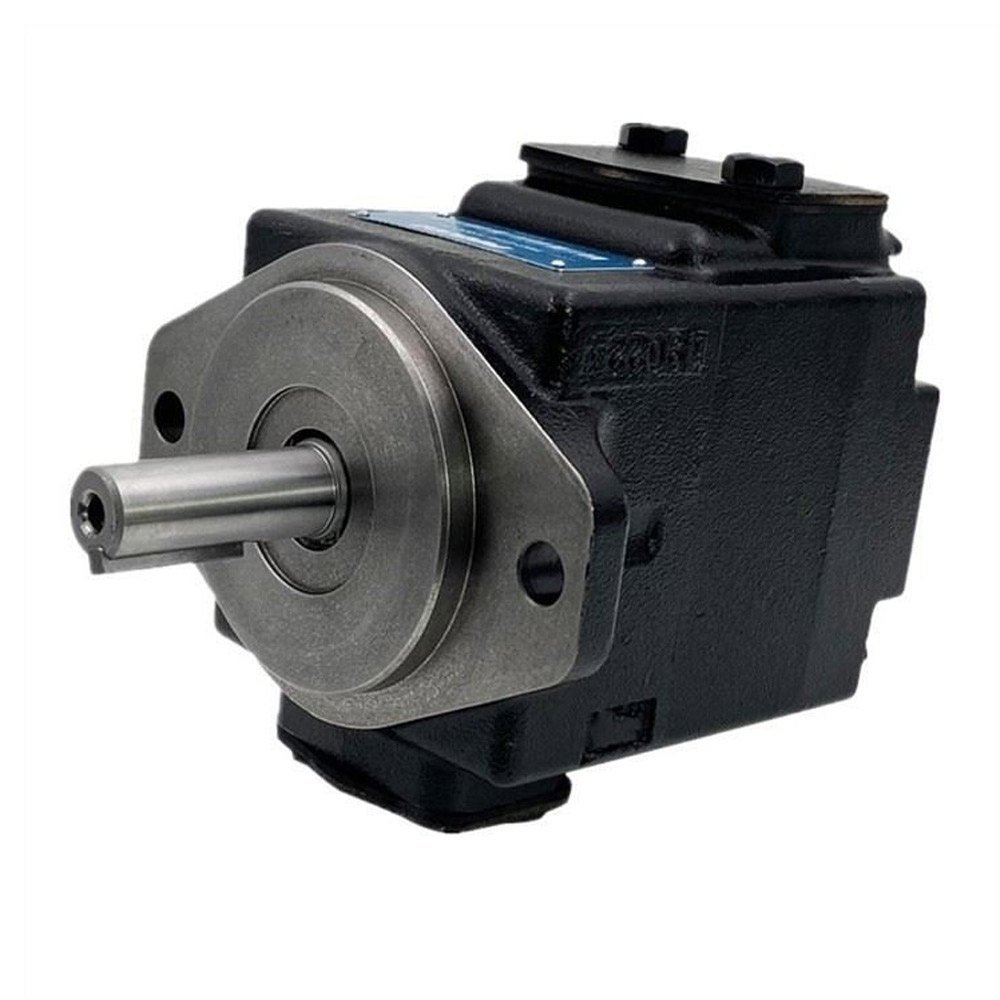

KCL’s KT Denison-Type Single Pumps are heavy-duty, high-pressure intra-vane pumps engineered to match the full specifications of Denison’s T6 and T7 single-pump product lines. Built for modern industrial hydraulic circuits that demand consistent output under continuous duty, these pumps combine an advanced intra-vane mechanism with rigorous manufacturing precision to deliver performance that stands up to the brands they’re designed to replace.

How the Intra-Vane Design Works in Your Favor

The intra-vane mechanism at the heart of every KT Series single pump is engineered to balance hydraulic loading evenly across the rotor. In practical terms, that means less internal stress on the pump’s rotating assembly, which translates directly into three things every plant engineer cares about: exceptional volumetric efficiency, minimal pressure ripple, and remarkably quiet operation — even when the pump is running at elevated pressures for extended periods.

Unlike simpler vane pump designs that lose efficiency as internal components wear, the balanced-load design of the intra-vane mechanism helps maintain consistent performance over a longer service life, reducing the frequency of unplanned maintenance and component replacement.

Built for High-Pressure, High-Efficiency Operation

Depending on the specific model and frame size you select, KT Denison-Type Single Pumps are rated for working pressures ranging from approximately 210 bar up to 240 bar, with select configurations rated even higher. This pressure range covers the vast majority of industrial hydraulic circuit requirements, from standard machine tool applications through more demanding industrial power unit installations.

Displacement options span a wide range — from smaller frame sizes suited to compact hydraulic units, through mid-range frames used in general industrial machinery, up to larger frame sizes capable of higher flow output for heavier-duty applications. This range means you’re not forced to over-spec or under-spec your pump selection; there’s a frame size matched to your actual flow and pressure requirements.

Modular Cartridge Design — Maintenance That Doesn’t Stop Production

One of the most practical advantages of the KT Series is its modular cartridge design. Rather than requiring a full pump teardown for routine maintenance, the cartridge kit structure allows for rapid on-site servicing, including flow capacity changes, without disturbing the pump housing or the piping connections already integrated into your system.

This matters more than it might initially seem. In a working plant, every hour a hydraulic circuit is offline for maintenance is an hour of lost production. The cartridge design means your maintenance team can service or upgrade the pump’s internal working elements quickly, without re-plumbing the entire circuit — a real difference when you’re weighing total cost of ownership, not just purchase price.

Configuration Flexibility

KT Denison-Type Single Pumps are available across multiple shaft configurations (keyed and splined, in SAE B, SAE BB, SAE C, and SAE CC variants depending on frame size), multiple porting combinations to match your existing plumbing layout, and both clockwise and counter-clockwise rotation options. Seal class options include standard mineral oil compatibility as well as fire-resistant fluid compatibility, so the same core pump platform can be specified correctly whether your application uses conventional hydraulic oil or a fire-resistant fluid for safety-critical environments.

For specialized mobile equipment applications, select variants are purpose-built for demanding duty cycles — including configurations engineered specifically for waste collection vehicles and agricultural tractors, where the pump has to tolerate vibration, temperature swings, and continuous operation that a standard industrial installation would rarely see.

Who Specifies KT Denison-Type Single Pumps

This product line is a natural fit for:

• Machine tool builders who need reliable, quiet hydraulic power for CNC machining centers, grinders, and other precision equipment
• Injection molding machinery manufacturers who require consistent, high-pressure hydraulic delivery across multiple shifts of continuous operation
• Industrial hydraulic power unit builders assembling standalone power units for a wide range of end-use applications
• Mobile and heavy equipment manufacturers who need pumps engineered to survive vibration, temperature extremes, and demanding duty cycles

Why Choose KCL’s KT Denison-Type Single Pump

When you specify a KT Series single pump, you’re getting a component engineered to match Denison’s T6/T7 single-pump specifications — verified against the dimensional and performance benchmarks that matter for a genuine drop-in replacement. That means no redesign of your existing hydraulic circuit, no compatibility guesswork, and no compromise on the performance your system was originally engineered around.

Backed by KCL’s ISO 9001:2015 certified manufacturing process and more than four decades of dedicated hydraulic pump production, every KT Denison-Type Single Pump that leaves our facility has been built and inspected to the same rigorous standard — whether you’re ordering a single replacement unit or specifying volume for a new equipment line.

Need help selecting the right frame size, shaft configuration, or seal class for your application? Contact our technical sales team with your circuit requirements, and we’ll help you specify the exact model that fits.
